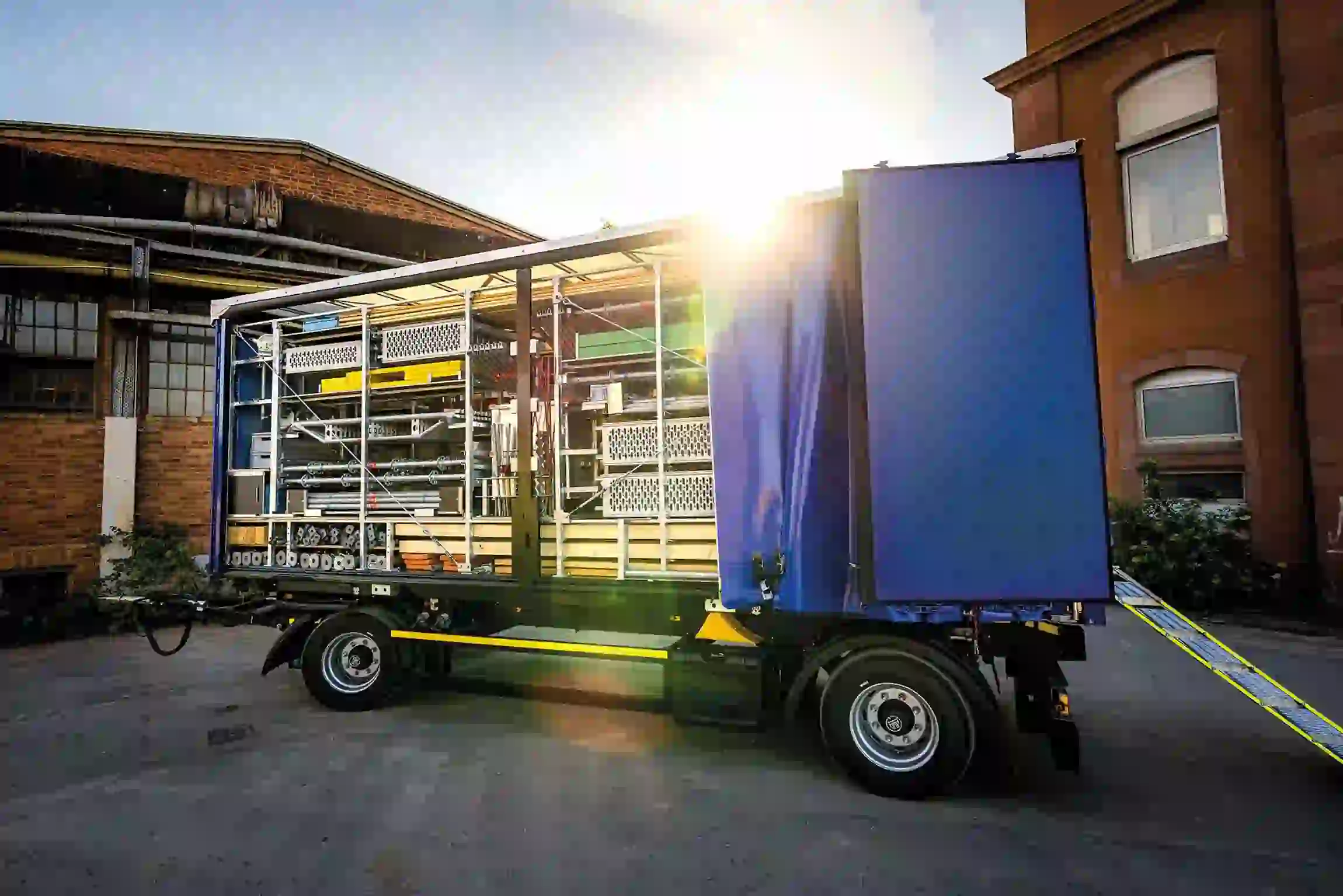

Vario-Load-Rescue®
The load carrier for civil protection and disaster control
inventied has developed a modular and flexible Vario-Load-Rescue® load carrier for rescue and disaster control organizations, which can be used in various trailer and container types. The Vario-Load increases work safety, time efficiency and ergonomics for those involved in the operation. It can beused optimally by the rescue specialist group of the THW and for search & rescue operations, among others.
Technical data
Length
Width
Height
Weight: Load
Weight: Carrier
Certifications by TÜV SÜD
7300 mm
2480 mm
2400 mm
7,5 t
2,3 t
- Load securing in accordance with §§ 22 and 23 StVO, §§ 30 and 31 StVZO
- DIN EN 12195-1 and VDI guideline 2700 ff
- Driving cycle test according to DIN EN 12642 Code XL Appendix B
Exemplary total weight with swap body and carriage: 15.2 t. Specifications vary depending on configuration.
Vario-Load-Rescue Presentation Video
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More Information
Brochure: Vario-Load-Rescue®
(EN / 5 MB / .pdf)
Loading according to THW STAN
- Insert scaffolding system, kit 2 Part number: 5440T22602
- Insert scaffolding system, kit 3 Part number: 5440T22703
- Insert scaffolding system, kit 4 Part number: 5440T22804
- Insert scaffolding system, kit 5 Part number: 5440T00053
- EGS equipment set Part number: 5180T00142
- Scaffolding system, scaffolding timber Part number: 5510T22900
- Scaffolding system, tarpaulin Part number: 8340T91289
- Spindle supports I, part number: 5440T00012
- Floor anchor, part number: 5440T00057
- Anchor rod, kit part number: 5440T22900
- Scaffolding timber 10 x 10 cm, length 50, 70, 120 cm
- Squared timber 10 x 10 cm, length 5 m
- Building supports
- Construction films
- Additional nails, screws, wooden wedges
Optionally adaptable to local conditions.
Support and scaffolding systems
The load carrier contains all materials according to StAN from the field of scaffolding (EGS), wall and floor anchoring technology as well as scaffolding timber. The total load for all materials used comprises over 1,400 parts. The following examples show some of the constructions that can be realized with the Vario-Load-Rescue scaffolding timber and the EGS kit.
Support systems with wood
Insert scaffolding system (EGS)
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationYou are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationYou are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationReasons to choose Vario-Load-Rescue®
The Vario-Load-Rescue® is a versatile EGS trailer for the THW, designed for demanding operations in disaster relief. As a robust rescue and recovery trailer, it offers maximum flexibility and efficiency on every mission.
Safety
Certified & accident-reducing
- Certified in accordance with §22 StVO and VDI 2700 et seq. by TÜV SÜD
- Reduced risk of injury thanks to an optimized loading area
- Intuitive, fast load securing with predefined locking mechanisms
Ergonomics
Built for critical situations
- Compliance with ergonomic requirements in accordance with DIN 33411 & DIN 33402
- All operational equipment is easily accessible
- Easy access via a wide, extendable staircase
Sustainability
More material, fewer trips
- Around 30% more material per trip compared to loose loading
- Modular design: resource-efficient when adapting or reconfiguring
- Lower maintenance costs than a fully motorized vehicle
- Manufactured and assembled entirely in Germany
Quality
Proven in real-world applications, not just calculated
- Corrosion-resistant, hard-wearing materials
- Successfully tested for long-term durability
- Based on the findings of a study on the operational benefits of load carrier systems
- Rapid deployment by eliminating setup times. The equipment is already securely loaded and ready for transport.
- Ready for immediate use at the deployment site. Components can be unloaded and used independently, without the need for additional material-handling equipment.
- Shorter deployment times - less loss of earnings.
- Thanks to the compartmentalized storage system, the inventory of operational equipment can be easily monitored at a glance. Overstocking or shortages can be identified and addressed quickly.
- Can be operated with fewer personnel.
- Preconfigured and mission-optimized equipment for rescue and recovery operations.
From design to reality: Vario-Load-Rescue®
FAQ - Frequently asked questions
Who is the Vario-Load-Rescue® suitable for?
The Vario-Load-Rescue® trailer body has been designed for the THW rescue team and is therefore ideal for this organization. Nevertheless, the load carrier can also be relevant for other areas if similar or even identical materials have to be transported. Feel free to contact us and we will discuss together whether the trailer structure is suitable for you.
Which materials are included in the recommended configuration of the load carrier?
The Vario-Load-Rescue® load carrier contains the prescribed materials from scaffolding kits 2 to 5 of the THW scaffolding system, the associated supplementary kits and the ground and anchor rod kits of the rescue specialist group. In addition, further materials have been added that have proven to be extremely useful in the field. Statistical evaluations were used to determine the quantities to be carried for all input materials.
You can find more information about the load and the deployment concept in the brochure: click here
Is it possible to deviate from the recommended configuration?
In principle, it is possible to deviate from the recommended configuration. We will be happy to provide you with an individual offer. If you have any questions, simply write to us at info[at]inventied.de or call us on +49 6233 2209593.
Can the Vario-Load-Rescue® be adapted retrospectively?
The trailer body can be adapted at any time, as it is made up of modules and adjustable units. This allows you to react flexibly to changes. Depending on the extent of the adjustment, you can carry out the adjustment yourself or we can advise you and find a solution together.
Which trailers is the Vario-Load-Rescue® compatible with?
The load carrier is suitable for trailers with the following internal dimensions: 7300 mm x 2480 mm x 2400 mm (L x W x H). The weight of the load carrier together with the recommended input material weighs around 7.5 tons. If your dimensions or other specifications deviate significantly from these standard values, please contact us and we will find a solution together.
What information is required before purchasing a load carrier?
We need data on your trailer so that we can configure the load carrier for you. If your trailer is already stored in our system, no further information is required. If this is not the case, we need certain dimensions, specifications and technical data of the trailer from you.
