Overcoming obstacles
Loading vehicles
Easier accessibility
Access to platforms

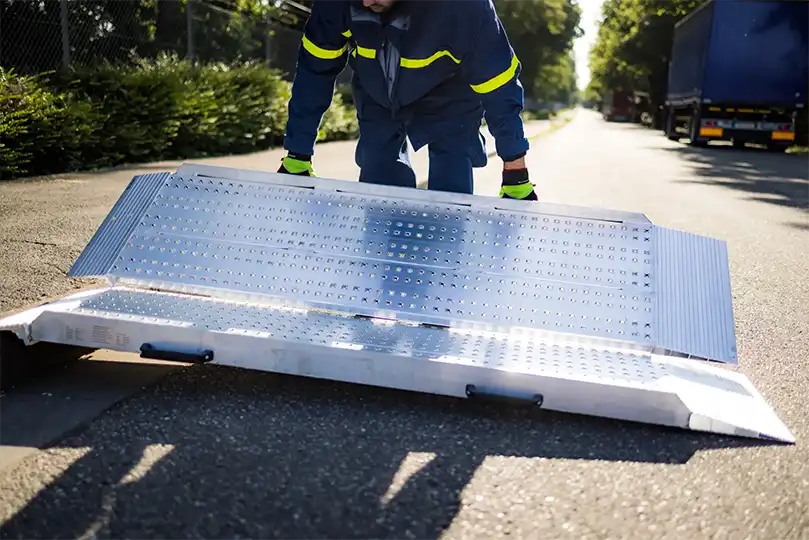

Explorer at a glance
The “Explorer” proves to be an unbeatable all-rounder among trolley ramps, as it effortlessly copes with the adversities of rain, snow and dirt. Driving up and down is made considerably easier thanks to the cleverly designed, flattened ramp ends. With its rough surface (R12), it offers exceptionally high slip resistance, and a bar on the side reliably prevents slipping to the side.
- Flattened ramp ends make it easier to drive on and off
- Rough surface (R12) for particularly high slip resistance
- Side-mounted bar prevents slipping to the side
- 2-part, therefore space-saving transportable with handles for carrying
The “Explorer” is the ultimate solution for anyone looking for versatility and safety in a trolley ramp.
- Accessible for trolleys, pallet trucks and pedestrians
- with a track width up to max. 990 mm
- for rescue with drag basket
- Accessible with hand truck, wheelbarrow and wheelchair
- Accessible for trolleys and walkable for people
- with a track width up to max. 990 mm
- for rescue with drag basket
- Accessible with hand truck, wheelbarrow and wheelchair
The “Explorer” is the ultimate solution for anyone looking for versatility and safety in a trolley ramp.
- Flattened ramp ends make it easier to drive on and off
- Rough surface (R12) for particularly high slip resistance
- Side-mounted bar prevents slipping to the side
- 2-part, therefore space-saving transportable with handles for carrying
Dimensions in transport position
Width: 505 mm
Depth: 100 mm
Weight per unit: 21 kg
Dimensions in operating condition
Length: 1,985 mm
Width: 1,010 mm
Inner width: 1,000 mm
Load capacity:
Axle spacing 750 mm: 870 kg
Axle spacing 1,000 mm: 985 kg
Vario at a glance
The Vario trolley ramp is characterized by its innovative two-part design, which allows it to be easily adapted to different track widths. This means that the ramp can be flexibly adjusted to the distances between the wheels of different vehicles, making it extremely versatile in its use.
With its two-part design, “Vario” offers both adaptability and safety.
- Very good adaptability to different track widths thanks to 2-part design
- Side-mounted bar prevents slipping to the side
- Can be folded in the middle for space-saving transportation
- non-slip surface
- Optionally with non-stick coating
- Can be driven on with trolleys with various track widths
- Accessible with wheelbarrows
With its two-part design, “Vario” offers both adaptability and safety.
- Can be driven on with trolleys with various track widths
- Accessible with wheelbarrows
With its two-part design, “Vario” offers both adaptability and safety.
Dimensions in transport position
Length: 750 mm
Width: 250 mm
Depth: 120 mm
Weight per unit: 6.5 kg
Dimensions in operating condition
Length: 1,500 mm
Width: 250 mm
Inner width: 195 mm
Load capacity:
Total load capacity: 800 kg
Enquire now!
Simply fill out our contact form and let us know which product(s) you are interested in.
