The adapter system that turns your construction prop into a tripod
3 props + 1 Bautri = all possibilities
There’s a tripod in every prop! The application possibilities are endless: whether for bracing, rescue operations, lifting loads, or lighting, with the Bautri System, you can use your existing equipment even more flexibly.
The system can be assembled by one person in just a few minutes. All you need is a wrench.
Thanks to height-adjustable legs, setup on uneven ground is no problem. Even significant height differences can be easily compensated.
- Certified for personal fall protection up to 4 m!
Bautri-Rescue adapter system
€699,00 incl. VAT
The great advantage is that the safe
stand has been certified even without bracing
and securing
with ground pegs;
these can optionally be supplemented
to ensure a safe stand
in very difficult
conditions.
Safe stand
Whether pegs or chains, round or webbing slings: The eyelets on the feet of the Bautri system allow the tripod to be secured in a variety of ways. If required, wheels or heavy-duty rollers can be attached to the foot plates.
Quickly ready for use
The screws for mounting the props are already fixed to the adapter plates. Only the nuts need to be tightened to assemble the tripod.
High compatibility
The Bautri system is compatible with all standard DIN EN 1065 props, classes B, D or BD, as well as with spindle props such as the Ischebeck Titan HV
Tripod Props with Bautri in Action

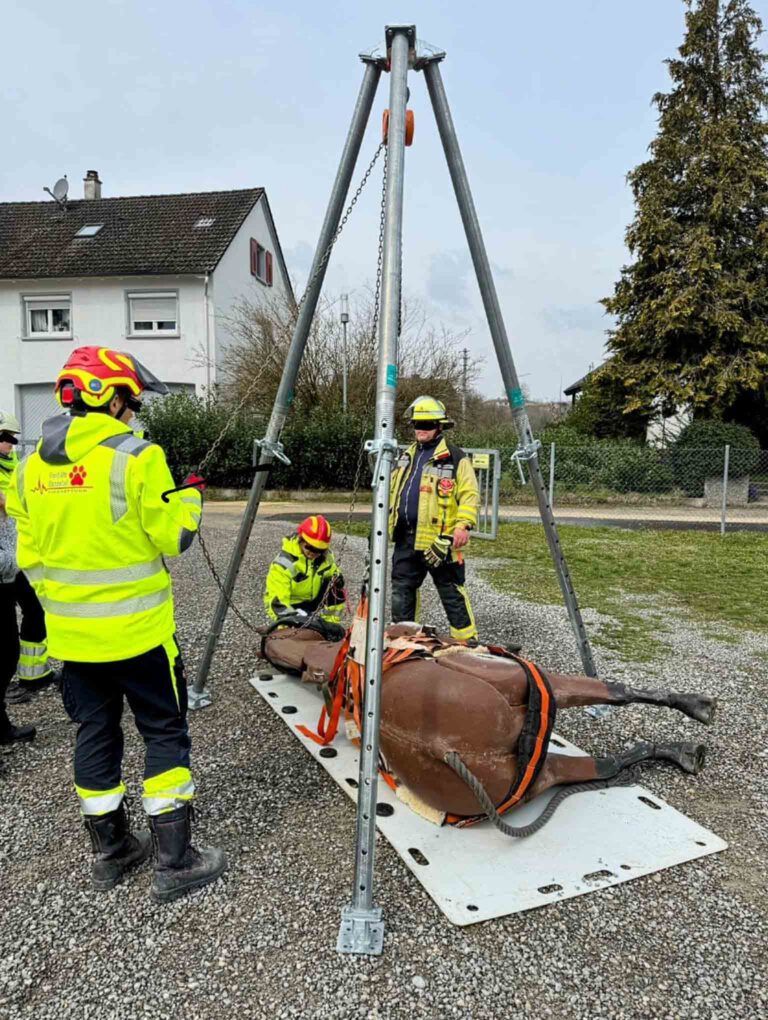

Bautri Rescue is used in a wide range of deployment scenarios where safety and flexibility are required – especially in areas with a risk of falling or technical challenges.

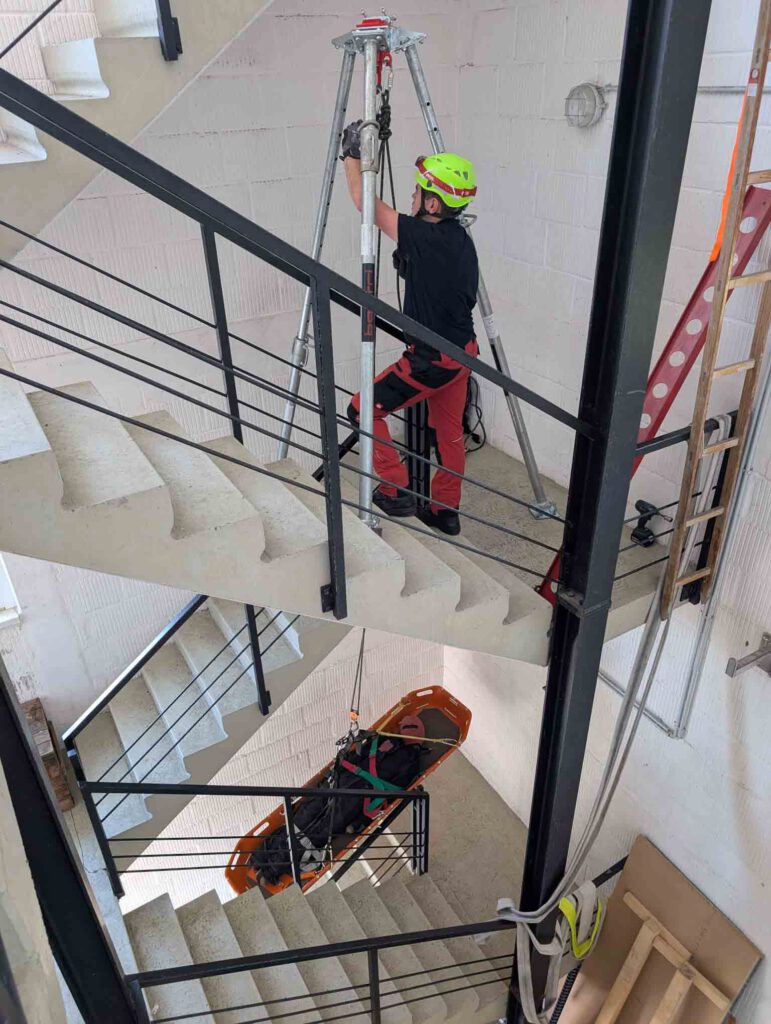

- Personnel safety for shafts

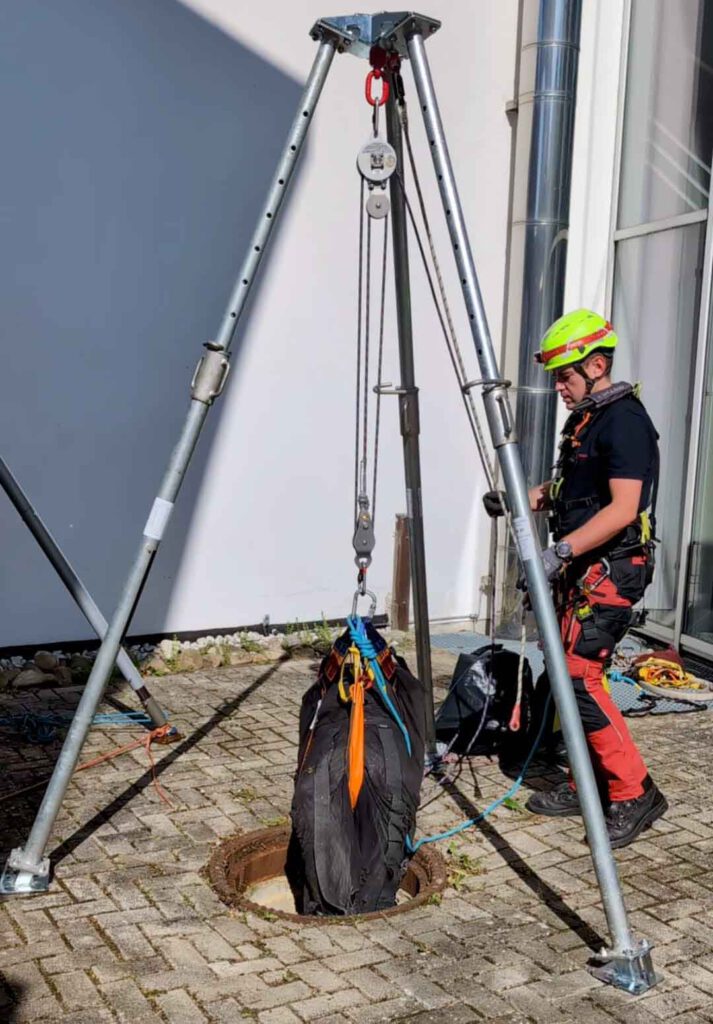

- Rescue of persons with fall arrester or cable winch

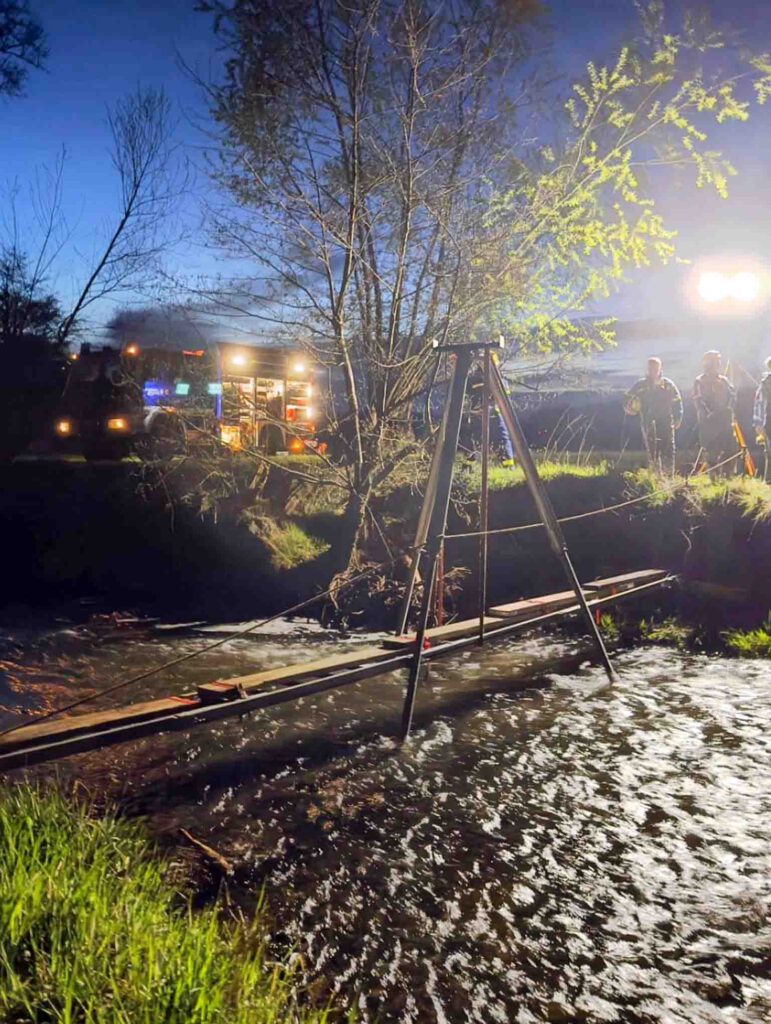

- Cable bridge Cable traverse
- Road crossings

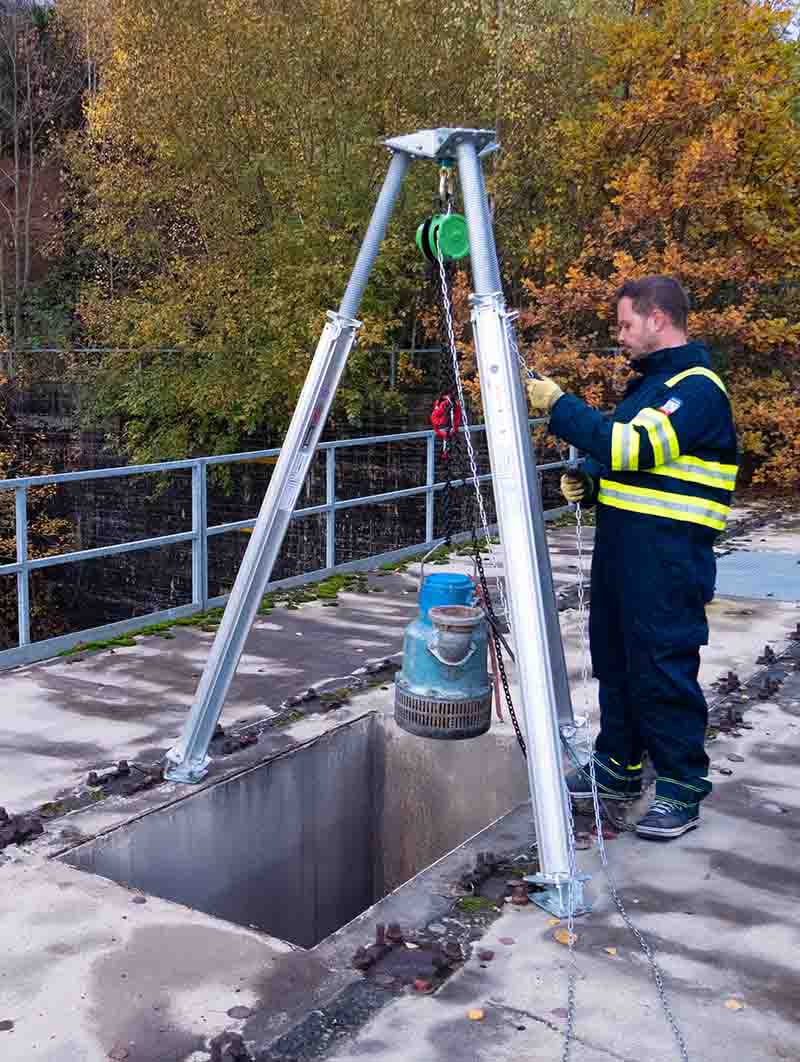

- Mobile pump sump
- Flagpole
- Radio antenna & lightning conductor
- Lighting stand
- Camera tripod for surveillance (e.g. for police)

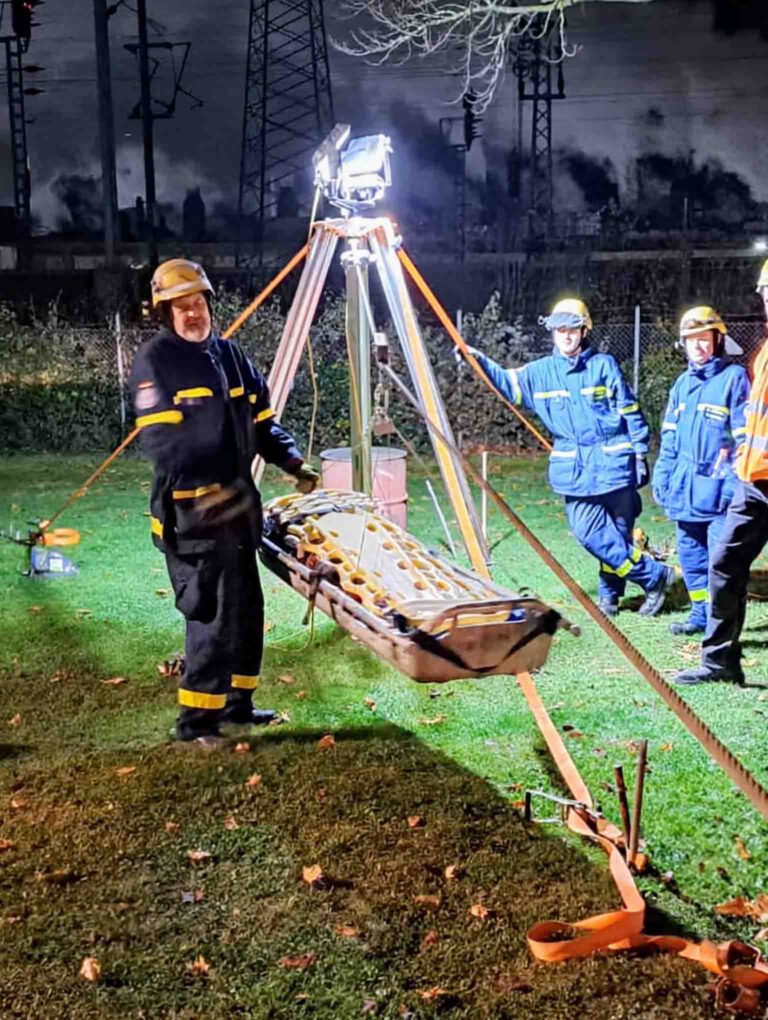

- Lighting mast on construction sites or emergency sites
- Inclined cableway
Bautri tripod in practice - What customers say
Translated from German
Head plate
Head elements 3x
Holes for anchor points
and standard spigots
Certified lifting swivel
Screw / nut set
Secondary attachment point

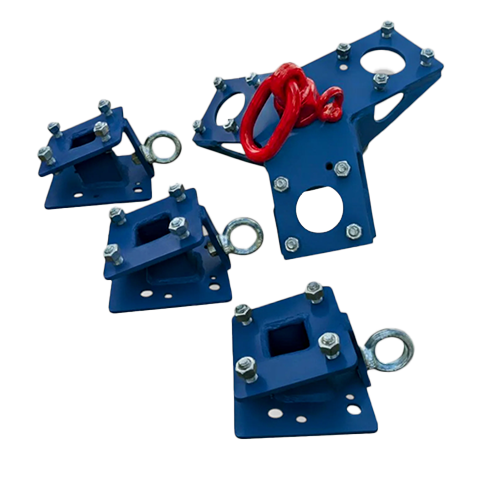

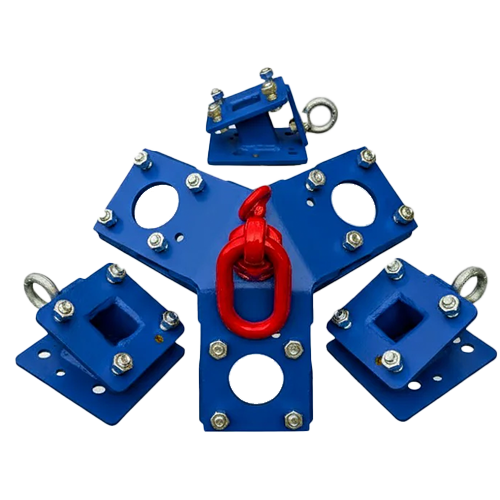

Components of Bautri-Rescue
The galvanized Bautri system consists of a top plate and three base elements. In the horizontal position, the supports are attached to the head plate one after the other and the base elements are attached. The screws of the head plate are threaded and do not need to be countered. Damaged screws can be replaced quickly and inexpensively.
- Certified lifting swivel
- Additional holes for attachment points and standard spigots (DIN 14640) (for attaching spotlights) on the head plate
- Marotech "MT Secure OP" anti-slip coating on the foot elements
Scope of delivery:
- Head plate
- Three base elements
- Screw/nut set (24x M12x30 hexagon head screws / 24x M12 nuts)
- Red sling swivel (Wll 4t)
- M20 nut
- 3x M12 eyebolt with nuts
- Secondary attachment point (WLL 1t)
Technical data
Bautri Rescue is certified as a PPE anchorage device in accordance with DIN EN 795:2012 Type B and CEN/TS 16415:2013 and therefore offers tested safety for professional use. It enables up to three people to be secured at the same time, whereby the maximum body weight per person must not exceed 100 kg. Ideal for working at height where reliable protection is the top priority.
- Weight: 15 kg
- Pack size: 40 x 40 x 15 cm
- Manufactured in a certified company (EXC3 according to DIN EN 1090-2:2019)
- Personnel securing is permitted up to 4 m extension.
Maximum load when used as a load lifting and support system (2006/42/EC (Machinery Directive)):
- 2.5 tons loads up to 4 m extension of the supports (B and BD supports; test load 38 kN) <br>
- 3.3 tons only possible with BD props up to 3.5 m extension length (test load 50 kN)
The standardized hole pattern fits a wide variety of base plate designs.
Compatible with standard props
A major advantage of the Bautri system is that it works across all brands and is compatible with the majority of all common building/formwork props. The props only require flat anchor plates at both ends, which have four holes of at least ø12mm each. The holes must be 80mm square from each other. The size of the anchor plates should not exceed 160x160mm.
Buy Bautri
You can buy the Bautri tripod adapter directly in our online store.

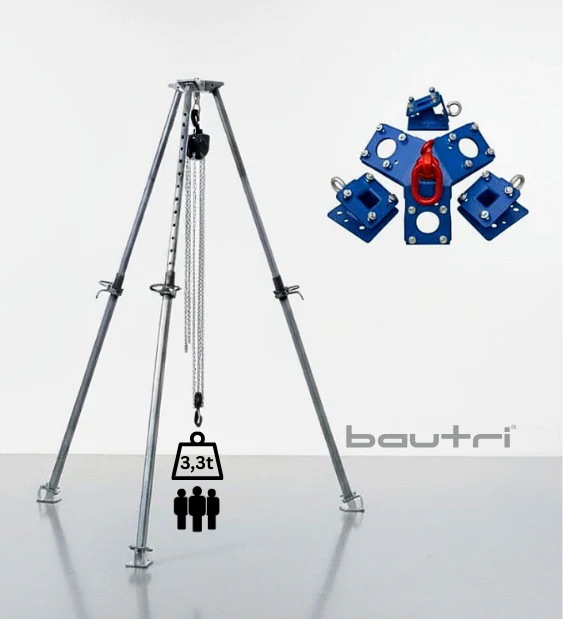

Bautri - The adapter for your tripod
The Bautri adapter can be used regardless of manufacturer and is compatible with most common building and formwork props, provided they have flat anchor plates with a standardized hole pattern of 80×80 mm and at least 12 mm holes.
Universal compatibility
Compact and robust design
High load capacity
Easy handling
How Bautri works
Optionally available transport box
With its compact external dimensions of 47x21x37 cm, this robust and waterproof box offers enough space for a Bautri system, a chain hoist, heavy-duty rollers, a tensioning strap, a back chain and other small parts. Thanks to its extremely robust construction, it can withstand even the toughest conditions and ensures that your equipment remains safe and protected – no matter where it is used.
Statics and load analysis
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat. Lorem ipsum dolor sit amet, consetetur sadipscing elitr.
-
Markenübergreifend kompatibel zu gängigen Baustützen der DIN EN 1065.
-
Der Abstand der Fußelemente zueinander bei Auszug auf 300cm beträgt ca. 195cm (bei 400cm ca. 255cm).
-
Max. 20kN Zugbelastung am Anschlagpunkt.
-
Es können Ringschrauben und Anschlagwirbel der Größe M20 angebracht werden.
Lorem Ipsum
Lorem Ipsum
Safety factors
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Lorem ipsum dolor sit amet, consectetur adipiscing elit.
- Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
- Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
- Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
- Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
- Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Applications currently in the approval process
The following constructions are neither tested nor approved. They are merely intended to serve as examples of the versatility of the Bautri system.
Disclaimer
Certified application
The adapter is only approved for securing persons in accordance with DIN EN 795. Any other use (e.g. as a supporting structure or load suspension) is at the user’s own risk.User responsibility
The user is obliged to independently check the compatibility of the props (material, diameter, load-bearing capacity) as well as correct installation.
Regular safety checks of the entire system are mandatory.Limitation of liability
We assume no liability for damages or consequences caused by:Lack of compatibility of components
Improper use or installation
Non-certified usage scenarios
arise. Warranties only apply in the event of verifiable manufacturing defects in the adapter. Illustrations & guarantees
Photos are for illustrative purposes only and do not constitute a guarantee of properties.
FAQS - Frequently asked questions
Everything you need to know about the Bautri system – clearly and comprehensibly explained. Whether structure, possible uses or areas of application: Here you will find practical information about our flexible tripod props.
What is the Bautri tripod and what is it used for?
The Bautri tripod is an innovative system that uses a special head plate to connect commercially available stabilizers to form a stable tripod. It is used to support loads, as an anchor point for securing people and loads and for a wide range of applications in construction, gardening and landscaping, rescue operations and disaster control.
How high and resilient is the Bautri tripod?
The maximum height of the tripod depends on the props used and can be up to 6 meters. The load capacity is given by the props used and the tested head plate. The system is certified for loads of up to 3.3 tons (depending on the prop) and for personal safety (max. 100 kg per person) with an extension of up to 4 m.
Which props is the Bautri tripod compatible with?
The system is compatible with most commercially available props in accordance with EN 1065 and DIN 4425, including Ischebeck Titan HV props. The props must have a specific hole pattern in order to be securely connected to the top plate.
How is the Bautri tripod constructed?
The system is set up quickly and easily by two people. The props are bolted to the head plate and secured with chains or straps. Thanks to the screw connections, safe and stable assembly is guaranteed.
What advantages does the Bautri tripod offer compared to classic tripods?
The Bautri system is particularly flexible as it can be used with standard props. It is lightweight, quick to assemble, space-saving to transport and versatile in use. It is also tested and certified in accordance with current standards, which guarantees maximum safety.
